VOR
Overview

VHF
Omni Range

ADF

GPS

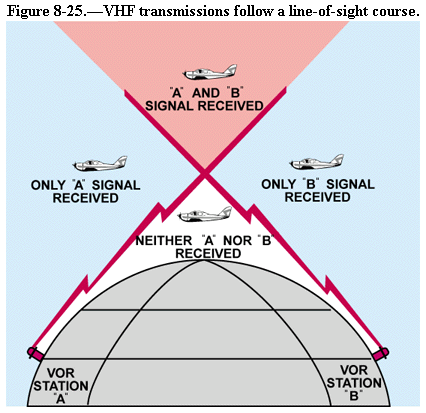

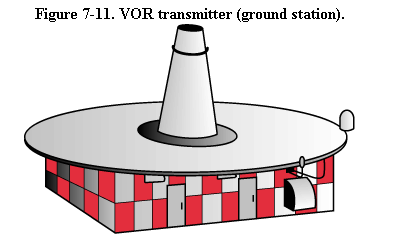

  VOR Transmitter Station VHF Nav Signals are Line of Sight ADF Equipment - Typical GPS Overview and Questions

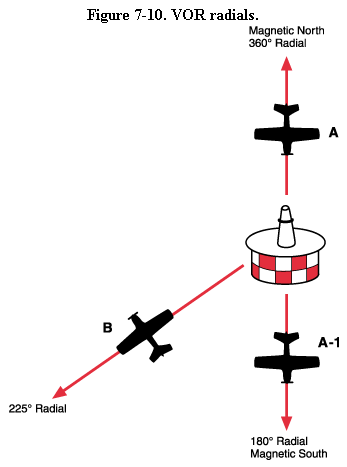

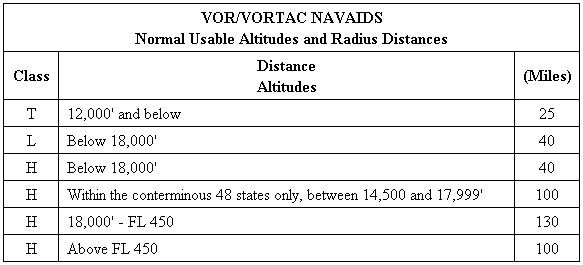

  VOR Usable Altitudes VOR Radials
(Figure 7-10)

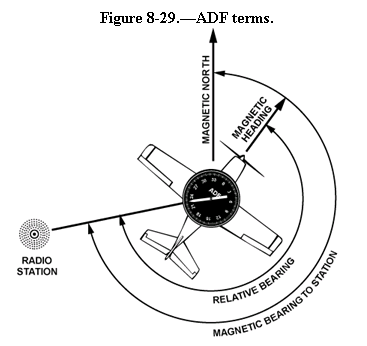

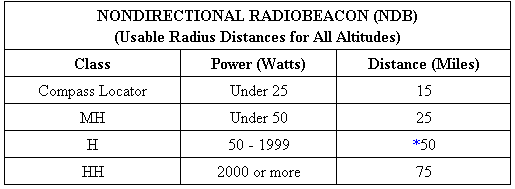

ADF Terms

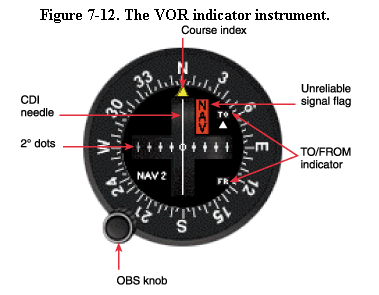

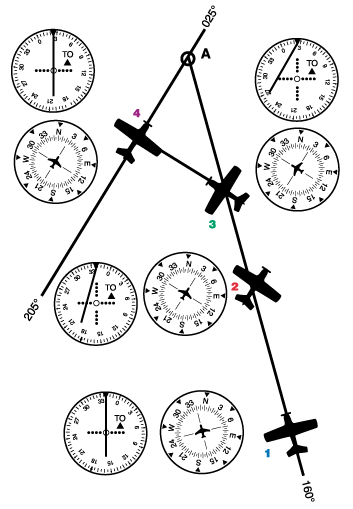

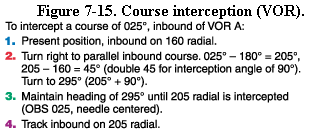

  VOR Course Interception VOR Indicator Terms
(Figure 7-12)

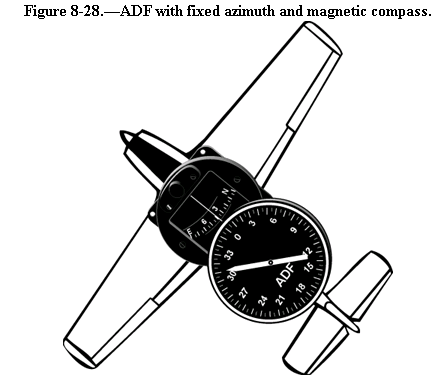

ADF Fixed Card Indicator
  VOR Course Tracking VOR To-From Indications

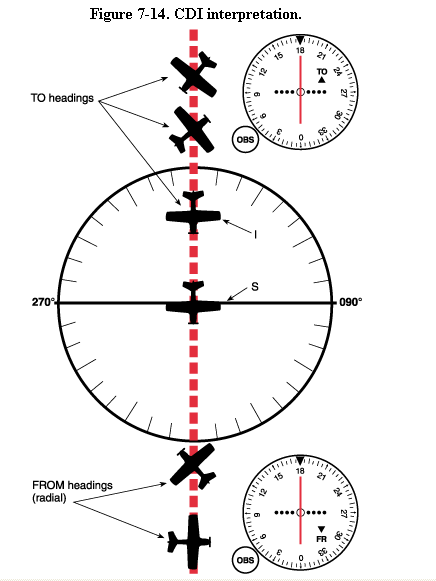

(Figure 7-14)
ADF Movable Card Indicator

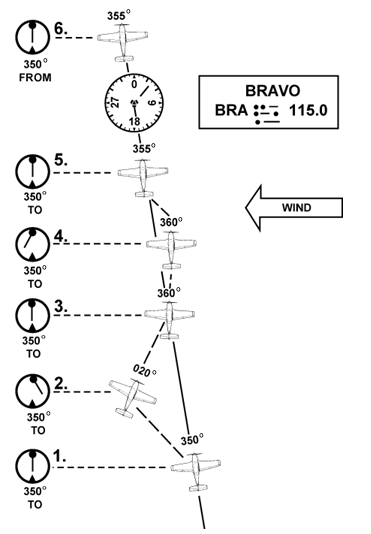

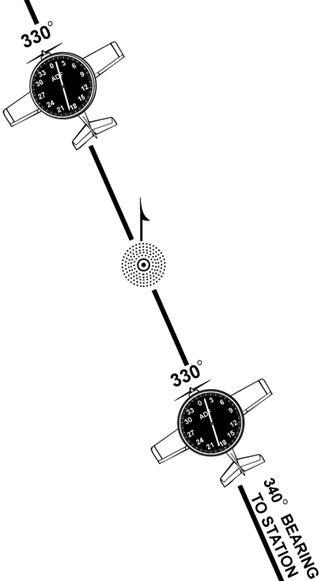

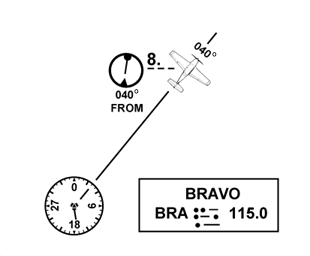

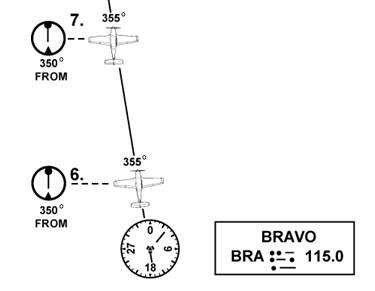

  Tracking a VOR Course   ADF Tracking to and From Station
      RMI with ADF and VOR Indications





































Index



































Index































Index































Index

































Index

































Index

Index
Index






































Index


































Index

































Index

































Index

































Index

































Index

































Index

































Index



































Index



































Index

GPS is a United States satellite-based radio navigational, positioning, and time transfer system operated by the Department of Defense (DOD). The system provides highly accurate position and velocity information and precise time on a continuous global basis to an unlimited number of properly-equipped users. The GPS constellation of 24 satellites is designed so that a minimum of five are always observable by a user anywhere on earth. The GPS receiver uses data from a minimum of four satellites to yield a three dimensional position (latitude, longitude, and altitude) and time solution.



How many satellites make up the Global Positioning System (GPS)?

 24.



What is the minimum number of Global Positioning System (GPS) satellites that are observable by a user anywhere on earth?

5.



How many Global Positioning System (GPS) satellites are required to yield a three dimensional position (latitude, longitude, and altitude) and time solution?

4.
