1 Aerodynamics              Index  Figures  Legend

Click Below Speaker to Listen                                 5 Question Quiz




Aerodynamic
Terms

Loads and Load Factors

Axes
of Rotation

Flaps

Ground Effect


Ground
Reference Maneuvers

Stability

Stalls
and Spins

Thrust Drag
Lift Weight

Turns


Wake
Turbulence

Airfoil Shapes  Angle of Attack Airflow at various
angles of attack
Airfoil section

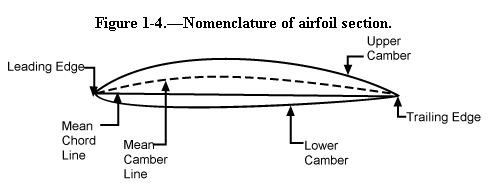

Nomenclature
Angle of bank vs. load factor
Angle of bank vs. stall speed Axes of Rotation Rotation
Elevators  Ailerons
 Rudder
Bernoulli's Principle Drag vs. Relative wind

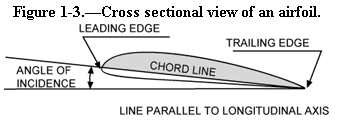

Center of Gravity Cross sectional view
of an airfoil
Drag Curves  Flight Path vs.
Relative Wind

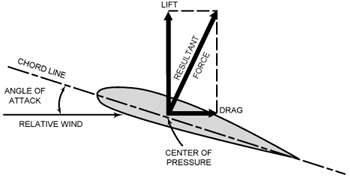

Forces acting on the
airplane in flight


  Left-turning tendency Lift and Drag Components  Low Pressure Above Wing High Pressure Below

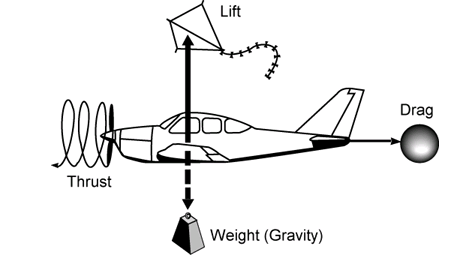

Figure 1-1
Forces acting on the airplane in flight   Index

Index































Figure 1-2   Index

The angle of attack (above) is the angle between the wing chord
and the flight path (relative wind).

Index

The angle of attack is always based on the flight path, (relative wind) not the ground.
Index































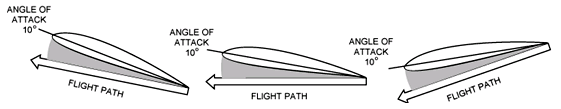

Figure 1-3   Index

Index































Figure 1-4  Index

Index































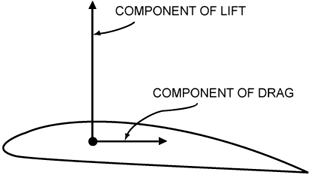

Figure 1-5   Index

Index































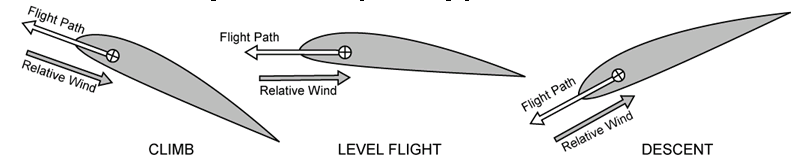

Figure 1-6  Index

Index

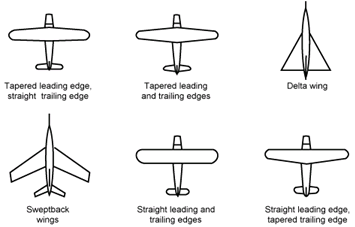

Figure 1-8   Index

Index































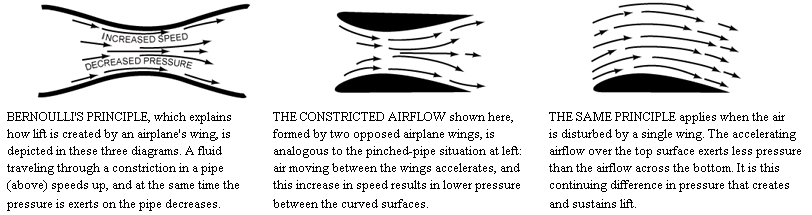

Figure 1-9   Index

Index































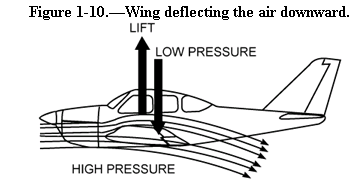

Figure 1-10   Index

Index

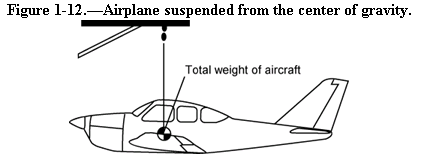

Figure 1-12   Index

Index







































Figure 1-13 Drag acts parallel to
and in the same direction as the relative wind.   Index

Index

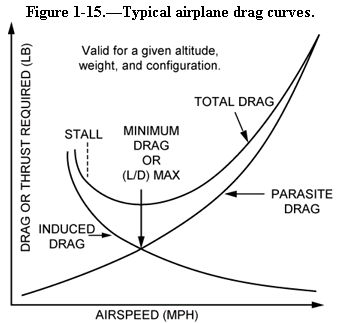

Figure 1-15   Index

Index

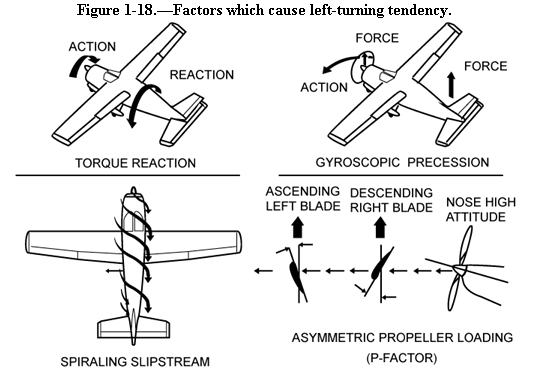

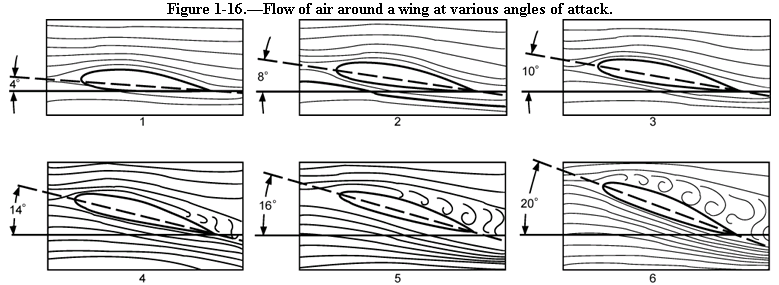

Figure 1-16   Index

Index































Figure 1-18   Index

Index

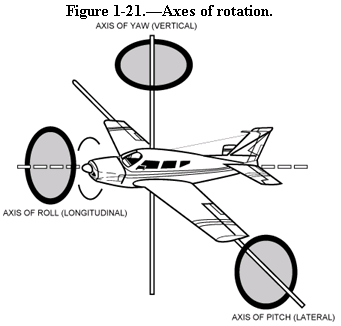

Figure 1-21   Index

Index

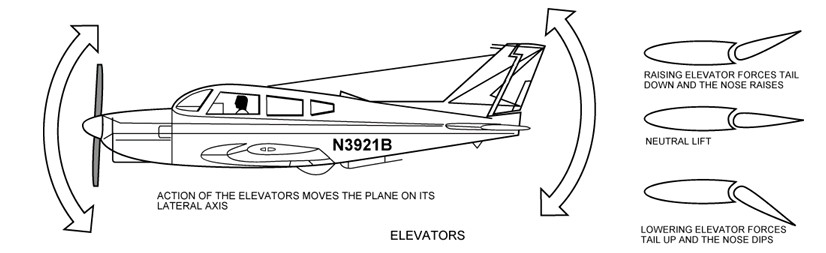

Figure 1-25 Effect of elevators   Index

Index

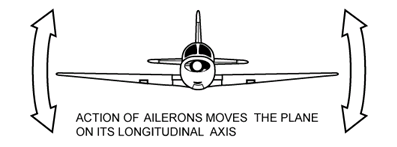

Figure 1-30 Effect of ailerons   Index

Index































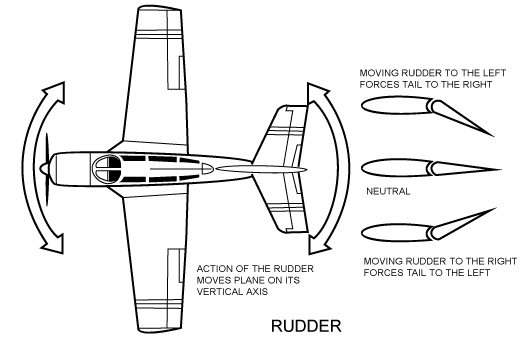

Figure 1-31 Effect of rudder   Index

Index































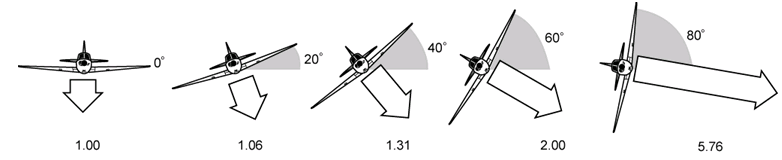

Figure 1-33 The load supported by the wings increases as the angle of bank increases. The increase is shown by the relative length of the white arrows. Figures below the arrows indicate the increase in load factor. For example, the load factor during a
60 degree bank is 2.00, and the load supported by the wings is twice the weight of the airplane in level flight.   Index


1-35

  Index


































 Copyright 2005
Tom Gorski
