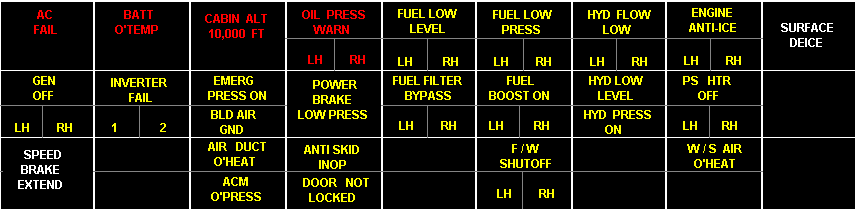

THRUST REVERSER UNLOCK LIGHT ON IN FLIGHT

1. Emergency Stow Switch................... ACTUATE ON AFFECTED ENGINE

2. Thrust Reverser Levers................CHECK THRUST REVERSER LEVERS AT STOWED (FULL FORWARD) POSITION IF LIGHTS WILL NOT EXTINGUISH

3. Thrust Reverser Circuit Breaker.......................................... CHECK IN

4. Maintain 200 KIAS or below.

5. Land as soon as practical. Index





























Index


THRUST REVERSER ARM LIGHT ON IN FLIGHT

1. Thrust Reverser Levers............................................ CHECK STOWED

• Full forward

2. Emergency Stow Switch...................................................VERIFY OFF

IF LIGHT IS STILL ILLUMINATED

3. Airspeed............................................... Maintain 200 KIAS or BELOW

4. HYD PRESS ON Light............................................................. CHECK

• If HYD PRESS ON Light Is Illuminated (thrust reverser isolation valve is

open):

5. Affected Thrust Reverser Circuit Breaker..............................PULL

6. Land as soon as possible.

• Affected thrust reverser should be inoperative.

• If HYD PRESS ON Light Is not Illuminated (probable pressure switch problems):

5. Land as soon as practical.

NOTE

With a thrust reverser circuit breaker pulled, the emergency

stow system of the opposite reverser is deactivated. Index































Index
Thrust Reverser is Deployed.

THRUST REVERSERS — INADVERTENT INFLIGHT DEPLOYMENT

1. Reverser Indicator Lights.....................CHECK ILLUMINATION of ARM, UNLOCK, and DEPLOY LIGHTS

2. Affected Engine............................................................. CHECK IDLE

3. Emergency Stow Switch................... ACTUATE ON AFFECTED ENGINE

4. Airspeed.........................................REDUCE TO 125 KIAS OR BELOW

• 115 KIAS with Flaps Extended

• After thrust reverser stows, do not exceed 200 KIAS

5. Reverser Indicator Lights.......................UNLOCK AND DEPLOY LIGHT EXTINGUISHED; ARM AND HYD PRESS ON LIGHT ILLUMINATED

NOTE

If thrust reverser is stowed, engine may be operated normally. Thrust reverser can not be used during landing if emergency stowed.

6. Land as soon as practical.

IF THRUST REVERSER WILL NOT STOW

7. Thrust Reverser Circuit Breaker.......................................... CHECK IN

8. Throttle (Affected Engine)......................................................CUTOFF

9. Airspeed............................................MAINTAIN 150 KIAS OR BELOW

10. Refer to SINGLE ENGINE APPROACH AND LANDING procedure. Index









































   Index


ENGINE FIRE (ENGINE FIRE SWITCH ILLUMINATED)



1. Throttle (Affected Engine)...........................................................IDLE

IF LIGHT REMAINS ON

2. Engine Fire Switch...........................................LIFT COVER and PUSH

3. Either Illuminated Bottle Armed Light......................................... PUSH

4. Ignition...................................................................................NORM

5. Throttle (Affected Engine)............................................................OFF

6. Electrical Load............................................... REDUCE AS REQUIRED

• 400 amperes maximum to 35,000 feet; 325 amperes maximum

above 35,000 feet

ENGINES/FUEL

7. Boost Pump...............................................................................OFF

8. Land as soon as practical.

IF FIRE WARNING LIGHT ON AFTER 30 SECONDS

9. Remaining Illuminated Bottle Armed Light.................................. PUSH

10. Land as soon as possible.

IF LIGHT GOES OUT AND SECONDARY INDICATIONS ARE NOT PRESENT

2. Land as soon as practical.

























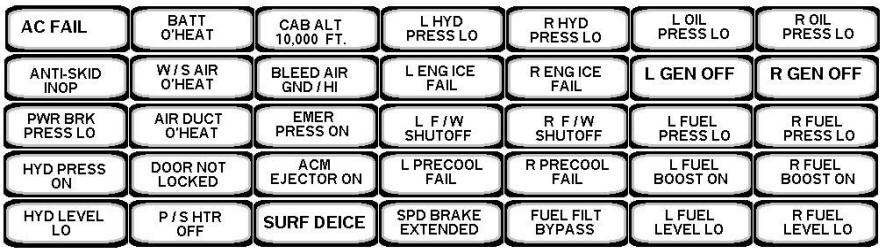

Unit Numbers 2 through 505
The selected inverter has failed.
Index

550 and on:
AC Bus Failure,
One or both inverters have failed.

Triggers MASTER WARNING


SINGLE INVERTER FAILURE (INVERTER FAIL 1 OR 2 LIGHTS AND AC FAIL LIGHT ON)

ADVISORY

Indicates loss of power from affected inverter.

1. AC Inverter No. 1 and No. 2 Circuit Breakers....................... CHECK IN

2. Master Warning.......................................... RESET and continue flight

NOTE

Operation of all alternating current powered avionics

equipment will be sustained by the opposite inverter. The

flight director may disengage. It may be re-engaged to

operate on the remaining inverter. Index

AC POWER FAILURE (BOTH INVERTERS 1 AND 2 FAIL AND AC FAIL LIGHTS ON)



Inverter Circuit Breakers (AC Inverter No. 1 on LH panel and AC

Inverter No. 2 on RH Panel)................................... CHECK and RESET

IF ONE OR BOTH INVERTERS RESET

2. Land as soon as practical.

IF BOTH INVERTERS WILL NOT RESET

3. AC Inverter No. 1 Circuit Breaker (LH Panel)...............................PULL

4. INVTR FAIL 2 Annunciator....................................................... CHECK

• No annunciation indicates recovery of Inverter 2

NOTE

If Inverter 2 recovers, do not reset Inverter No. 1 breaker.

IF INVTR FAIL 2 ANNUNCIATOR REMAINS ILLUMINATED

5. AC Inverter No. 1 Circuit Breaker (LH Panel).............................RESET

6. AC Inverter No. 2 Circuit Breaker (RH Panel)...............................PULL

7. INVTR FAIL 1 Annunciator....................................................... CHECK

• No annunciation indicates recovery of Inverter 1 Index

NOTE

If Inverter 1 recovers, do not reset Inverter No. 2 breaker.

IF INVERTER 1 OR 2 RECOVERS (INVTR FAIL 1 OR 2 ANNUNCIATOR

EXTINGUISHED

8. Land as soon as practical.

IF BOTH INVERTERS REMAIN FAILED

9. Battery Switch......................................................................... EMER

NOTE

• If the inverters will not come back on line after the circuit breakers have been reset, complete the flight by using the standby flight instruments. Placing the battery switch to EMER will provide AC power from the copilot’s static inverter to power the copilot’s compass system and NAV 2.

• The Honeywell EFIS system (PFDs and MFD) will be inoperative with electrical system failure. With the battery switch in EMER, NAV 1 and compass information will be displayed on the Standby HSI. Refer to the copilot’s pneumatic attitude indicator or the standby attitude gyro and standby altimeter/airspeed indicator for attitude, altitude, and airspeed information.

10. Land as soon as practical. • Within 30 minutes Index
































AC POWER AND/OR DISTRIBUTION FAILURE (AC FAIL LIGHT ON AFTER MASTER WARNING HAS BEEN RESET, INVERTER FAIL 1 AND 2 LIGHTS OUT) Index

1. Check the right sub-circuit breaker panel for disengaged AC BUS circuit breaker(s).

CAUTION

IF CIRCUIT BREAKER(S) IS/ARE DISENGAGED, OPERATE WITH LOSS OF BUS AS RE-ENGAGEMENT MAY RESULT IN FURTHER DAMAGE TO THE ELECTRICAL SYSTEM.

NOTE

Depending on which bus(ses) has/have been lost, the following equipment will be lost:

a. 26 VAC Bus 1 — Pilot’s ADI, pilot’s RMI; pilot’s HSI (HDG and NAV flags in view); pilot’s rate-of-turn indicator; copilot’s RMI compass card and NAV 1 bearing pointer; and ADF 1.

b. 115 VAC Bus 1 — Pilot’s flight director; autopilot; yaw damper; radar and pilot’s attitude gyro; and VNAV computer/controller.

c. 26 VAC Bus 2 — NAV 2, copilot’s ADI (optional dual flight director installation); and copilot’s HSI; copilot’s RMI; pilot’s RMI compass card and NAV 2 bearing pointer and ADF 2 (optional). Operation of the following equipment can be reinstated by placing the BATT switch to EMER: NAV 2; copilot’s RMI bearing pointer and DG of copilot’s HSI.

d. 115 VAC Bus 2 — Copilot’s flight director (optional); air data computer and pilot’s altimeter. The autopilot will only operate in the basic autopilot modes due to loss of valid signal from the air data computer. Index

























MASTER WARNING LIGHT ON STEADY Index

1. Warning Light Circuit Breaker................................................. CHECK

2. Instruments (Hydraulic, Electrical and Engine).......................MONITOR Index























BATTERY OVERHEAT (BATT O’TEMP LIGHT ON) Index

Steady Illumination: Battery temp has reached 145 degrees F.
Flashing indicated the battery has reached a temperature of 165 degrees F.

Triggers MASTER WARNING


1. Battery Switch......................................................................... EMER

2. Amperage..............................................................NOTE DECREASE

3. If battery voltage is 1 volt less than generator voltage in 30 seconds

to 2 minutes, monitor battery overheat annunciator for possible change.

IF BATTERY O’TEMP LIGHT GOES OUT

4. Battery Switch..........................................................................BATT

IF NO AMP DECREASE OR BATTERY O’TEMP LIGHT FLASHES

4. Flood Lights................................................................. FULL BRIGHT

5. Generators.................................................................................OFFIndex

• The BATT O’TEMP light will extinguish immediately when the generators are turned off if the battery relay is not stuck. With the battery switch in emergency position and the generators off, power is supplied for approximately 30 minutes to the following equipment: COMM 1, NAV 2, Overhead Floodlights, Voltmeter, Copilot’s HSI.

The standby attitude indicator will continue to operate powered by its own emergency battery pack. This battery pack also provides 5 volt emergency instrument lighting. Make sure that the cabin services (refreshment center, cabin lights) are OFF.

IF NORMAL DC POWER IS LOST (BATTERY RELAY NOT STUCK)

6. Generators................................................................................GEN

• BATT O’TEMP light will come back on until battery cools

7. Battery Switch...........................................................................OFF

8. Land as soon as practical.

IF NO DC POWER LOST (BATTERY RELAY STUCK)

6. Microphone Selector......................................................EMER COMM

• Headphones required to receive audio

7. Receiver Select......................................................COMM 1 to HDPH

• Required only if AUTO SELECT is OFF

8. Windshield Bleed Air Manual Valves..............................................OFF

9. DC Power LH and RH BUS NO. 1, 2 and 3 Circuit Breakers..........PULL

10. Land as soon as practical.

WHEN LANDING ASSURED

11. DC Power LH and RH Bus Circuit Breakers...............................RESET

12. Landing Gear..........................................................................DOWN

13. Flaps.......................................................................................LAND

14. Airspeed.....................................................................................VREFIndex

CAUTION

WHEN LANDING WITH EMERGENCY POWER (BATTERY SWITCH-EMER AND BOTH GENERATORS OFF), THE FOLLOWING ARE NOT AVAILABLE:

• THE LANDING GEAR NORMAL OPERATION IS NOT AVAILABLE: THE LANDING GEAR MUST BE LOWERED USING THE BLOWDOWN SYSTEM AND THE LANDING

GEAR WARNING LIGHTS WILL NOT ILLUMINATE.

• THE FLAPS WILL NOT OPERATE. IF NOT PREVIOUSLY IN THE LANDING POSITION, A FLAP INOPERATIVE LANDING MUST BE MADE.

• THE ANTISKID/POWER BRAKE SYSTEM IS INOPERATIVE; ONLY THE EMERGENCY BRAKE SYSTEM IS AVAILABLE.

• THE ENGINE ANTI-ICE VALVES WILL BE OPEN. REFER TO ANTI-ICE ON THRUST CHARTS.

• THE OUTSIDE AIR TEMPERATURE GAGE IS NOT RELIABLE, SO USE CAUTION WHEN APPLYING POWER (EXCEPT FOR GO-AROUND WHERE GROUND TEMPERATURES CAN BE USED).

• ALL ENGINE INSTRUMENTS EXCEPT THE VERTICAL TAPE N1 WILL BE INOPERATIVE. THE VERTICAL TAPE N1 WILL INDICATE ERRATICALLY BELOW APPROXIMATELY 50% N1 BUT WILL GIVE RELIABLE INDICATIONS ABOVE 50% N1.  WITH THE BATTERY SWITCH OFF, ALL POWER FROM THE EMERGENCY BUS WILL BE REMOVED.

• AFTER LANDING, REFER TO AIRPLANE MAINTENANCE MANUAL FOR PROPER MAINTENANCE PROCEDURES, AS DAMAGE TO THE BATTERY MAY HAVE OCCURRED. Index













































Cabin pressure is above 10,000 Feet Index


CABIN DECOMPRESSION (CAB ALT 10,000 FT WARNING LIGHT ON)

Triggers MASTER WARNING

1. Oxygen Masks..............................................DON and 100% OXYGEN

2. Oxygen Microphone Switches..................................... MIC OXY MASK

3. Emergency Descent.................................................... AS REQUIRED

4. Pressurization Source Selector.............................................NORMAL

5. Passenger Oxygen........................................ENSURE passengers are receiving oxygen

• MANUAL DROP as required.

6. Transponder.................................................................EMERGENCY

NOTE

• Headsets or hats worn by the crew should be removed prior to donning the oxygen masks.

• The passenger oxygen masks will deploy automatically when cabin altitude exceeds 13,500 feet ±600 feet.

• If a high altitude airport (field elevation greater than 8000 feet MSL) is selected on the cabin pressurization controller, the CAB ALT 10,000 FT warning light will illuminate at a cabin altitude of 10,000 feet ±350 feet.

IF NOT ARRESTED BY 14,000 FEET CABIN ALTITUDE

7. PRESS SOURCE Select Knob.................................................... EMER

8. Control cabin temperature with LH throttle.

9. Emergency Descent.............................................................INITIATE

• Refer to EMERGENCY DESCENT procedure

10. Refer to USE OF SUPPLEMENTAL OXYGEN procedure

11. Below 10,000 feet MSL,

consider PRESS SOURCE Select Knob..................................... NORM

12. Land as soon as practical.

IF ARRESTED BELOW 14,000 FEET CABIN ALTITUDE

7. Refer to USE OF SUPPLEMENTAL OXYGEN procedure.

8. Land as soon as practical.Index




































LOW OIL PRESSURE (OIL PRESS WARN LIGHT ON) Index

Oil pressure is below 35 PSI in the left or right engine.

ABOVE 70 PSI

1. Land as soon as practical.

BETWEEN 35 AND 70 PSI

1. Throttle (Affected Engine)......................................... REDUCE POWER

2. Land as soon as practical.

BELOW 35 PSI

1. Throttle (Affected Engine)............................................................OFF

2. Accomplish ENGINE FAILURE/PRECAUTIONARY SHUTDOWN

procedure


LOW OIL PRESSURE (OIL PRESS WARN LIGHT OFF)

BETWEEN 35 AND 70 PSI

1. Throttle (Affected Engine)......................................... REDUCE POWER

BELOW 35 PSI

1. Land as soon as practical.

Triggers MASTER WARNING index



































Fuel quantity according to the float switch is between 169 and 219 pounds useable in the indicated tank. Index
ADVISORY

The illumination of this light serves notice to the pilot that

a minimum of 169 pounds of fuel remains in either tank.

1. Fuel Boost...................................................................................ON

• Check boost pump circuit breakers in

2. Land as soon as practical. index





































Fuel pressure is low.
Index

Fuel Boost..............................................................ON

• Check boost pump circuit breakers in

2. Fuel Quantity......................................................................... CHECK

3. Fuel Crossfeed.............................................................. IF REQUIRED index



































Left or right hydraulic pump output is below normal.Index
Unit numbers 2 through 436 indicate "L/R HYD PRESS LOW".


ADVISORY

Indicates inoperative pump. Index



































Either of the following: Index
1.  Throttle is below the 60% N2 position
2.  Nacelle Inlet Temp is below 104 degrees C
3.  Engine Stator Anti-Ice Valve is not fully open
4.  Failure of automatic temperature controller (light modulates on and off)
5.  Failure of wing leading edge to stay within range (one or more heating elements inop.)
6.  Wing leading edge temperature below 16 degrees C Index

CONTINUOUS ILLUMINATION

1. Throttle.................................................................INCREASE POWER

2. Engine Anti-Ice Controls.... CHECK SWITCHES AND CIRCUIT BREAKERS

3. Leave icing environment.

MOMENTARY ILLUMINATION (CYCLES ON AND OFF)

ADVISORY

Indicates failure of normal temperature controller or a wing heating element.  Index



































Indicates proper boot inflation pressure.  Illuminates twice during the 12 second cycle. index



































Generator power relay is open. Index
 Illumination of both LH and RH triggers the MASTER WARNING.

LOSS OF BOTH GENERATORS

1. Generators.......................................RESET THEN GEN

IF ONLY ONE GENERATOR COMES ON

2. Electrical Load....................................................REDUCE as required

• 400 amperes maximum to 35,000 feet; 325 amperes maximum

above 35,000 feet

IF NEITHER GENERATOR COMES ON

2. Floodlights....................................................................FULL BRIGHT

3. Battery Switch......................................................................... EMER

• With the battery switch in the emergency position and the generators off, power is supplied for approximately 30 minutes to the following equipment:
COMM 1, NAV 2,
Overhead Floodlights,
Voltmeter, Copilot’s HSI

The standby attitude indicator will continue to operate powered by its own emergency battery pack. This battery pack also provides 5 volt emergency instrument lighting. Make sure that the cabin services (refreshment center, cabin lights) are OFF.

Microphone Selector......................................................EMER COMM

• Headphones required to receive audio

5. Receiver Select......................................................COMM 1 to HDPH

• Required only if AUTO SELECT is OFF

6. Windshield Bleed Air Manual Valves...................... OFF or MINIMUM for clear vision through windshield

7. Land as soon as practical

WHEN LANDING ASSURED

8. Battery Switch..........................................................................BATT

9. Landing Gear..........................................................................DOWN

10. Flaps.......................................................................................LAND

11. Airspeed.....................................................................................VREFindex

CAUTION

WHEN LANDING WITH EMERGENCY POWER (BATTERY SWITCH-EMER AND BOTH GENERATORS OFF), THE FOLLOWING ARE NOT AVAILABLE:

• THE LANDING GEAR NORMAL OPERATION IS NOT AVAILABLE: THE LANDING GEAR MUST BE LOWERED USING THE BLOWDOWN SYSTEM AND THE LANDING GEAR WARNING LIGHTS WILL NOT ILLUMINATE.

• THE FLAPS WILL NOT OPERATE. IF NOT PREVIOUSLY IN THE LANDING POSITION, A FLAP INOPERATIVE LANDING MUST BE MADE.

• THE ANTISKID/POWER BRAKE SYSTEM IS INOPERATIVE; ONLY THE EMERGENCY BRAKE SYSTEM IS AVAILABLE.

• THE ENGINE ANTI-ICE VALVES WILL BE OPEN. REFER TO ANTI-ICE ON THRUST CHARTS.

• THE OUTSIDE AIR TEMPERATURE GAGE IS NOT RELIABLE, SO USE CAUTION WHEN APPLYING POWER (EXCEPT FOR GO-AROUND WHERE GROUND TEMPERATURES CAN BE USED).

• ALL ENGINE INSTRUMENTS EXCEPT THE VERTICAL TAPE N1 WILL BE INOPERATIVE. THE VERTICAL TAPE N1 WILL INDICATE ERRATICALLY BELOW APPROXIMATELY 50% N1 BUT WILL GIVE RELIABLE INDICATIONS ABOVE 50% N1.index

SINGLE GENERATOR FAILURE (GEN OFF LIGHT ON)

1. Electrical Load.................................................DECREASE if required

• 400 amperes maximum up to 35,000 feet; 325 amperes maximum over 35,000 feet

2. Failed Generator...............CHECK SWITCHES and CIRCUIT BREAKERS;

RESET AS REQUIRED

IF UNABLE TO RESET

3. Failed Generator.........................................................................OFFindex







































Either the #1 or the #2 inverter has failed. Index
Illumination of either LH or RH lights triggers the AC Fail Annunciator, which in turn triggers the MASTER WARNING. index








































EMERGENCY PRESSURIZATION ON (AUTOMATIC ACTUATION)
Index

Emergency pressurization has been manually selected, or the ACM has overheated.
During ACM overheat, if the ACM cools down with 12 seconds, it will revert to normal
operation. During overheat on the Ground, the emergency pressurization valve does
not open (de-activated by squat switch) but the light illuminates. Index

ADVISORY

Indicates air cycle machine shutdown or failure.

1. NORM Pressurization Circuit Breaker.................................. CHECK IN

2. Temperature Control............................ADJUST TO WARMER SETTING

• May require manual mode

NOTE

A time delay relay will lock the system into emergency pressurization if air cycle machine temperature remains too high for 12 seconds or more. If machine cools sufficiently in less than 12 seconds, the system will automatically return to the previously selected mode.

3. Pressurization Source Selector................................................. EMER

NOTE

Wait as least one minute after pressurization source selector has been positioned to EMER before making next selection.

4. Pressurization Source Selector................................ RH, LH, or NORM

IF EMERGENCY PRESSURIZATION REMAINS ON

5. Pressurization Source Selector................................................. EMER

6. Control cabin temperature with LH throttle. Index









































Pressurization source selector is in the GND position and the Ground Valve is open.


ADVISORY

Light must be out before takeoff.

IN FLIGHT

1. Pressurization Source Selector Switch..................................... NORM Index









































Brake hydraulic pressure is low. Anti Skid Inop will also illuminate. Index


POWER BRAKE SYSTEM FAILURE (POWER BRAKE LOW PRESS AND ANTISKID INOP LIGHTS ON)

1. Skid Control Circuit Breaker....................................................RESET

IF LIGHTS REMAIN ON

2. Plan to use the emergency brake system for landing.

3. Brake Pedals............................. REMOVE FEET FROM BRAKE PEDALS

4. Emergency Brake Handle.....................................PULL AS REQUIRED

CAUTION

ANTISKID SYSTEM DOES NOT FUNCTION DURING EMERGENCY BRAKING. EXCESSIVE PRESSURE ON EMERGENCY BRAKE HANDLE CAN CAUSE BOTH WHEEL BRAKES TO LOCK, RESULTING IN BLOWOUT OF BOTH TIRES.

5. Multiply the landing distance of AFM by 1.6  Index











































Index
Filter bypassing of the indicated filter is impending or occurring.

ADVISORY

Consider possibility of partial or total loss of both engines.

Inspect filters after landing. index









































Index With fuel boost pump switch in the NORM position, this illuminates with the Annunciator.
FUEL BOOST ON also illuminates with the switch in the ON Position. Automatically illuminates with the switch in the
normal position during engine start, and crossfeeding.
Index

ADVISORY

Indicates that the respective fuel boost pump was either automatically or manually turned on.

1. Fuel Boost Switch (Affected Pump)................................................ON

• Then.................................................................................NORM

IF FUEL BOOST PUMP ON LIGHT REMAINS ILLUMINATED

ADVISORY

If affected FUEL LOW PRESS light does not extinguish, leave the fuel boost switch in NORM with pump running. Index







































Index Fluid level is below .2 gallons.

1. Land as soon as practical.

• The speed brakes and thrust reversers may not operate and the gear may not operate using normal procedures. Index



































Index
System is pressurized. On when T/R's are deployed, and when gear or speed brakes are cycling. Index

HYDRAULIC SYSTEM REMAINS PRESSURIZED
(HYD PRESS ON LIGHT REMAINS ON AFTER SYSTEM CYCLE IS COMPLETED)


1. Speedbrake Control Circuit Breaker...........................................PULL

2. Landing Gear Control Circuit Breaker.........................................PULL

3. Thrust Reverser Circuit Breakers...............................................PULL

• One at a time

IF SYSTEM DEPRESSURIZED

4. Circuit Breakers.....................................................................RESET

• One at a time

• Leave pulled circuit breaker which caused system to

depressurize.

5. Land as soon as practical.

• Reset Landing Gear or Speedbrake Control (not thrust reverser)

Circuit Breaker, if pulled, prior to landing

IF SYSTEM REMAINS PRESSURIZED (INDICATES BYPASS VALVE FAILED)

4. Control Circuit Breakers..........................................................RESET

• One at a time

5. Land as soon as possible.

• If system bypass valve fails, the hydraulic system may overheat Index



































Index Pitot static heater is off, or with the switch on, power has been disconnected from the pitot tube heater,
or one or both static port heaters. Index

1. Anti-Ice Switches and Circuit Breakers..................................... CHECK

2. Determine Inoperative System.

NOTE

The autopilot references the pilot’s pitot-static system; therefore, the altitude hold function will be inoperative if the pilot’s pitot-static system fails. Index



































Left and right speed brakes are fully extended. Index









































Temp in the duct from the ACM to the cabin is excessively high temperature. Index

1. TEMP Circuit Breaker..............................................................RESET

2. Temperature Select.............................................................MANUAL

3. Manual Hot/Manual Cold Switch....................... MANUAL COLD; hold in this position until overheat light goes out

AFTER LIGHT GOES OUT

4. Auto Temperature Select......................................................... AUTO

NOTE

If the AIR DUCT O’HEAT light illuminates again, select MANUAL on Auto Temperature Selector and Control Temperature with the MANUAL HOT/MANUAL COLD Switch.

IF LIGHT DOES NOT GO OUT

4. Pressurization Source Selector.................LH or RH; reduce power on selected engine, if necessary Index





































Index Unit numbers 482, 485 and on... The ground valve has closed because the secondary overpressure switch has activated. Normal DC power must be removed to reset.

ON THE GROUND

1. Do not fly the airplane until the malfunction has been repaired.

IN FLIGHT

1. Pressurization Source Selector................... RH, reduce power on right engine to 80% turbine speed

2. EMER PRESS Circuit Breaker.....................................................PULL

3. NORM PRESS Circuit Breaker...................................PULL and RESET

4. EMER PRESS Circuit Breaker...................................................RESET

NOTE

If ACM O’PRESS light remains on, operate the right engine below 80% N2. Operate left engine normally. Index































Index

1. Autopilot/Trim Disengage Switch.............................................PRESS

NOTE

The autopilot must remain off during all flights conducted

above 14,500 feet. Index































Index Control switch is off, the unit is is test mode, or the Anti Skid Unit is inoperative.
This Annunciator is off with the gear handle in the UP position. Index

ANTISKID SYSTEM FAILURE (ANTISKID INOP LIGHT ON, POWER BRAKE LOW PRESS LIGHT OUT)


1. Antiskid Switch............................................................................ON

2. Skid Control Circuit Breaker....................................................RESET

IF LIGHT REMAINS ON

3. Antiskid Switch...........................................................................OFF

4. Multiply the landing distance of AFM by 1.6.

CAUTION

DIFFERENTIAL POWER BRAKING IS AVAILABLE. HOWEVER, SINCE THE ANTISKID IS INOPERATIVE, EXCESSIVE PRESSURE ON THE BRAKE PEDALS MAY CAUSE WHEEL BRAKES TO LOCK, RESULTING IN TIRE BLOWOUT.

5. Be prepared to use the emergency brake system.

NOTE

If the antiskid pump fails after the accumulator pressure exceeds 750 PSI, the POWER BRAKE LOW PRESS light may not illuminate until normal brakes are used. Index



































Index Indicates that either nose baggage door tailcone compartment door, or main cabin door is not locked.

ADVISORY

Indicates unlatched nose or tailcone doors, failure or improper position of one or more door switches, and/or possible disengagement of the lower forward cabin door pin.

ON THE GROUND

1. Correct condition prior to flight.

IN FLIGHT

1. Cabin Altitude.................................................. SELECT to 9,500 feet

2. Airspeed..............................................................................REDUCE

3. Passenger Advisory Light............................................. PASS SAFETY

4. Cabin Door....................................................................KEEP CLEAR

5. Descend to a lower altitude.

6. Land as soon as practical. Index









































Index The fuel and hydraulic shutoff valves are fully closed. They can be re-opened by pressing the ENG FIRE switch a second time.

ADVISORY

Operated by engine fire push switches. All electrical, fuel and hydraulic systems are closed at applicable firewall. Index















































Index
1-  With the control switch in either position, bleed air to the windshield exceeds 146 degrees C.
2- With the control switch off it indicates that the shutoff valve has failed open, or is leaking bleed air, allowing line pressure to exceed 5 psi. Index

WINDSHIELD BLEED SWITCH LOW OR HI

• Momentary Illumination (Airflow Stops)

1. If Windshield Bleed Air Switch is HI........................... SELECT LOW

2. Windshield Bleed Air Valves............................................. REDUCE

• Continuous Illumination (Airflow Stops, Probable Controller Failure)

1. Windshield Bleed Air Switch and Valves...................................OFF

2. Windshield Alcohol Anti-Ice...................................... AS REQUIRED

NOTE

Ten minutes alcohol available to the pilot’s windshield only.

WINDSHIELD BLEED SWITCH OFF

• W/S Air O’Heat Light On Momentary Or Continuous

ADVISORY

Indicates probable solenoid valve failure or leak. Winshield air temperature is not regulated. Windshield heat damage is possible. Maintenance is required.

1. Windshield Bleed Air Manual Valves................................. CLOSED Index
